Continuous Co-Extrusion & Antimicrobial Compounding

Our medical corridor systems utilize integrated dual-screw extrusion. High-impact vinyl covers are chemically compounded with inorganic silver-ion microparticles, providing full-depth active anti-bacterial layers that do not degrade under concentrated phenolic or quaternary ammonium hospital-grade surface disinfectants.

Vinyl Cover Thickness Tolerance

2.0mm (±0.1mm)

Chemical Resistance (ASTM D543)

No Surface Change

3D CAD Cross-Section Analysis of 140mm Handrail Component

Engineered Subsystem Components

Medical Handrail

2.0mm Vinyl Shell + 1.5mm 6063-T5 Aluminum Retainer

Crash Rail

Heavy-duty 200mm face width, dynamic continuous rubber cushion inserts

Corner Guard

50mm x 50mm 90° angle, high-impact rigid PVC skin cover

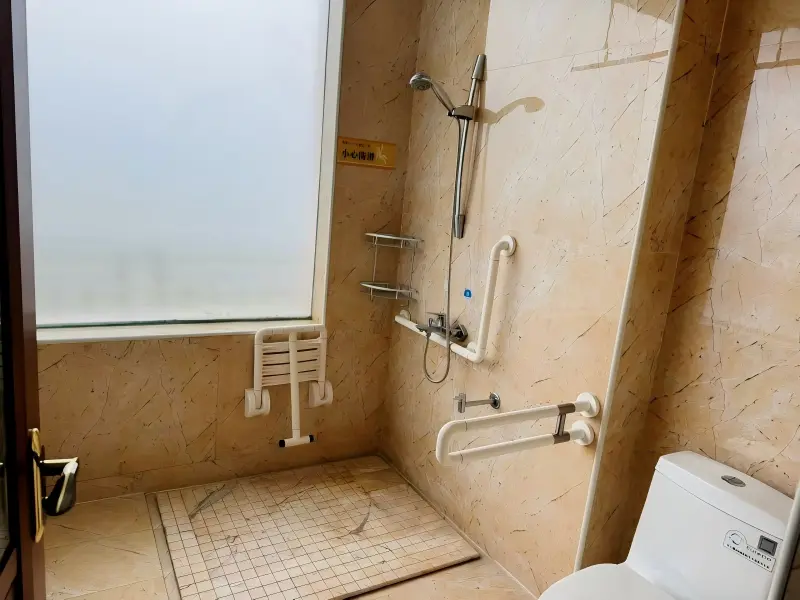

Wall Sheet Matrix

1.2mm / 1.5mm / 2.0mm thickness optional, anti-scratch texture

Material Parametrics & Standard Test Protocols

Testing Parameter	Standard Reference Method	Factory Certified Performance Matrix
Antimicrobial Invalidation	SGS / JIS Z 2801:2010	R > 4.0 (99.99% Kill Rate: E.coli & S.aureus)
Reaction to Fire / Smoke	EN 13501-1:2018	Class B-s2, d0 (Flame Retardant, No Burning Droplets)
Izod Impact Strength	ASTM D256-10 Method A	> 65 J/m (No cleavage/puncture under targeted drop kinetic load)
Aluminum Tensile Modulus	ASTM E8/E8M-21	Yield Strength ≥ 110 MPa; Hardness ≥ 8 HW

14,500 Meters

Vietnam National General Hospital (Batch Batch 1-3 Completed)

9,800 Meters

Kuala Lumpur Medical Center Extension (Pre-Cut Supply)

42 Tons

Total Custom Extrusion Shipped to Indian Apollo Hospital Extensions

Download Full Independent Lab Reports

Access direct unedited PDF certificates for CE fire classification, SGS toxicology tests, and tensile data sheets.

Request Certified Healthcare Submittal Package

Molding & Mechanical Anchor

Heavy-Wall Nylon Fluid Injection Molding & Flange Interlocking

Our geriatric safety systems are built using high-purity polyamide (Nylon) structural compounds outer jackets injection-molded over internal solid structural cores. The base interlocking plate utilizes thick SUS304 welding matrices, avoiding joint fatigue and brittle fractures under concentrated downward or horizontal pulling vectors.

Static Load Structural Threshold

200 kg (Stable)

Nylon Outer Layer Thickness

3.5mm / 4.0mm

CAD Blueprint Diagram Explaining Grab Bar Internal Multi-Point Steel Fixing Anchor

ADA-Compliant Anchorage Component Matrix

GB35-F Flip-Up Rail

35mm OD Nylon Tube + Deep SUS304 Internal core + Heavy Dampening Shaft

GB35-L Wall Grab Bar

90-degree continuous bend layout, multi-point heavy hex flange anchorage

Nylon Corridor Rail

Ribbed anti-slip continuous profile, fire-retardant internal composite support

SB450 Shower Bench

Reinforced engineering plastics seat + Solid wall hinge block assembly

Mechanical Anchor Specifications & Compliance

Structural Evaluation	Standard Reference Method	Factory Certified Performance Matrix
Ultimate Pull Load Limit	EN 12182:2012 (Assistive Products)	Passed 1.5kN (approx 153kg) sustained tensile vector for 5 mins
Surface Friction Index	ASTM C1028 (Slip Coefficient)	Wet conditions ≥ 0.62 (Excellent traction, non-slip textured finish)
Alloy Sub-core Oxidation Resistance	ASTM B117 (Salt Spray Testing)	96 Hours Continuous Exposure → 0% pitting or surface rust propagation
Antibacterial Matrix Integrity	ISO 22196:2011	Log reduction value > 3.8 (Active organic molecular degradation)

8,400 Units

Singapore Housing & Development Board (HDB) Senior Facility Supplies

11,200 Sets

Bangkok Geriatric Care Complex (Custom RAL Color Matched Batch)

100% Traceable

All batches stamped with localized materials heat-number codes

Request CAD Structural Anchoring Layouts

Accelerate consultant authorization with our standard detailed section blueprints for different block-wall / concrete anchors.

Download ADA Compliance Structural Sheets

High-Volume Heavy Compounding

Heavy-Duty Structural Vinyl Formulations & High UV Stabilizers

Infrastructure applications require heavy resistance to ambient light fading and continuous abrasive cleaning cycles. Our transit series introduces organotin thermal stabilizers and complex cross-linked UV-block matrices to ensure raw extrusion materials withstand high traffic wear without surface crazing or deep micro-cracking.

Accelerated Weathering (Xenon Arc)

Delta E < 1.5 @ 1000h

Shore D Hardness Threshold

≥ 82 Shore D

Heavy Duty Transit Crash Bar Mechanical Finite Element Impact Testing Configuration

High-Traffic Structural Component Profiles

SCR200 Super Crash bar

3.0mm extra-thick resilient structural armor shell + Industrial raw frame

Tactile Indicator Paving

Directional / Hazard studs, high-impact modified polymers matching transit path rules

Alloy Wall Retainer Track

Thickened 2.0mm structural 6063-T5 aluminum spine for major impact absorption

High-Vis Accent Caps

End closure accessories with matching UV resistance ratios, zero gaps

Public Infrastructure Abrasive & Resistance Matrix

Performance Evaluation	Standard Reference Method	Factory Certified Performance Matrix
Taber Abrasion Wear Resistance	ASTM D1044 (CS-10 Wheel, 1000g, 1000 cycles)	Mass loss ≤ 0.025g (Exceptional deep scratching mitigation)
Accelerated Xenon Aging Index	ASTM G155-21 (Weathering Cycle)	Grey scale evaluation rating ≥ 4.5 (No visual chalking or severe cracking)
Critical Radiant Heat Flux	ASTM E648 / EN ISO 9239-1	Critical Flux ≥ 4.5 kW/m² (Exceeds baseline tunnel safety norms)
Vitrification Glass Transition	ASTM D3418 (DSC Testing)	Stable profile behavior within extensive continuous ranges (-15°C to 60°C)

32,000 Meters

Metro Rail Rapid-Transit Sub-Corridors (High Density Supply)

18,500 Meters

Regional Integrated Tech University Campuses & Laboratories

0% Heavy Metals

RoHS Directive 2011/65/EU certified lead-free composition

Procuring for Mass Infrastructure Bids?

Acquire comprehensive structured submittals including complete material heat sheets and certifications required by government audit panels.

Request Infrastructure Tender Specification Data

OEM Die Extrusion Milling

Custom Cross-Section Die Tooling & Precision Automated Processing

Non-standard structural profiles require precision in mold engineering. Our internal tooling center mills complex extrusion dies using high-grade forged alloy tool steels. Backed by computerized CNC line cutters and multi-axis stamping equipment, we process custom linear dimensions, factory angle cuts, and pre-drilled fastening layouts directly on our production lines to eliminate field modification errors.

New Profile Tooling Lead-Time

10 - 15 Days

Linear Cutting Tolerance Range

± 0.5 mm

Precision Extrusion Die Flow Channel CAD Simulation Render

Factory OEM Customization Capabilities

Spectrophotometer Run

Spectral matching loop, color variance verification ΔE ≤ 0.5 via international lab baselines

CNC In-Line Cut down

Linear components pre-machined at factory to millimetric specifications, ready to mount

Pre-Punched Spline

Aluminum profiles stamped in-house at standard 400mm centers to reduce site setup overheads

Heavy Export Bundling

Secured reinforced moisture-barrier packaging labeled by floor level / zone tracking codes

Engineering Tolerances & Fabrication Capabilities

Fabrication Metric	Processing Mechanism	Technical Factory Tolerances Level
Color Matching Calibration	CIELAB Color Space Analysis via Datacolor Spectrophotometers	Delta E (ΔE*ab) ≤ 0.5 (Targeted to absolute system criteria)
Extrusion Profile Deviation	Continuous Calibrated Vacuum Sizing Tanks	Wall Thickness: ±0.1mm; Straightness Error ≤ 1.5mm/meter
Alloy Mechanical Tempering	Factory Thermal Aging Furnace Treatment	6063-T5 Profile execution mapping direct structural yield bounds
Linear Chop Splitting	Automated In-Line Digital Chop Saws	Length bounds down to ±0.5mm precision thresholds

50+ Items

National Patents Issued for Custom Processing Extrusion Arrays

15,000 ㎡

Wholly-Owned Chemical Blending & Extrusion Production Assets

RAL / Pantone

Direct structural translation matching color references seamlessly

Submit Blueprints directly to our Engineering Desk

Accelerate your material estimation phase. Send original layout drawings for instant factory mold evaluation and customized fabrication cost mapping.

Connect with Custom Tooling Engineers
